Pendulum Pedal (PRE-SALE)

$299.00

*Price is shown in CAD

Currently Sold Out | Round 3 of Pre-orders is now open | ETA: Spring 2025

Low, Thin, Concave, Self-righting. The mountain bike pedal re-imagined

Color:
Quantity:
Add To Cart

*Price is shown in CAD

Currently Sold Out | Round 3 of Pre-orders is now open | ETA: Spring 2025

Low, Thin, Concave, Self-righting. The mountain bike pedal re-imagined

*Price is shown in CAD

Currently Sold Out | Round 3 of Pre-orders is now open | ETA: Spring 2025

Low, Thin, Concave, Self-righting. The mountain bike pedal re-imagined

    • Platform Size: 120mm long and 115mm wide (100mm end of axle to outside edge)

    • Thickness: 7-14mm

    • Platform Height: -12mm from centre of the axle

    • Material: 7075 Aluminum

    • Pins: 9 per pedal, M3, protrude 5.0, 4 extra pins provided *** pins are undergoing a revision in batch 2, stay tuned!

    • Bearings: 7902

    • Colors: Black // Raw (Clear Anodized)

    • Weight: 414g per pair

    • Pair of pedals L/R

    • 18 preinstalled pins and spacers

    • 4 replacement pins and spacers

    • We recommend these pedals for shoes size 7 men's or women's 8.5 and larger

    • Please torque our pedals to 30-35NM. Do not overtorque

    • Certain cranks and crank boot combinations may require a pedal washer

    • Some customers may find themselves lowering their dropper posts ~12mm to accomodate for the lower ride height

    • Some riders enjoy these pedals with shorter crank arms

    • These pedals are designed for rider weights up to 110kg or 250lbs

    • We offer a 2 year warranty on bodies, axles and spacers.

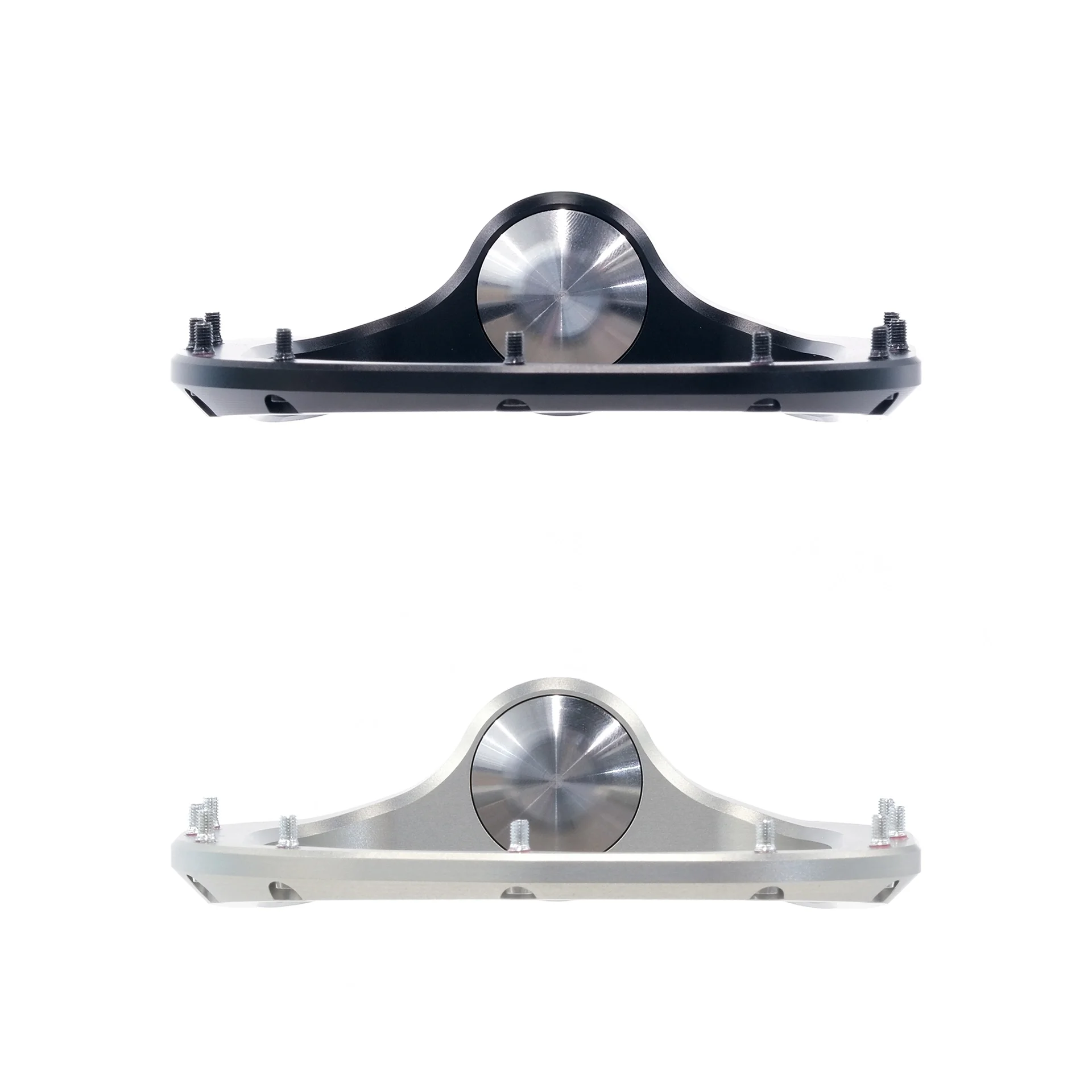

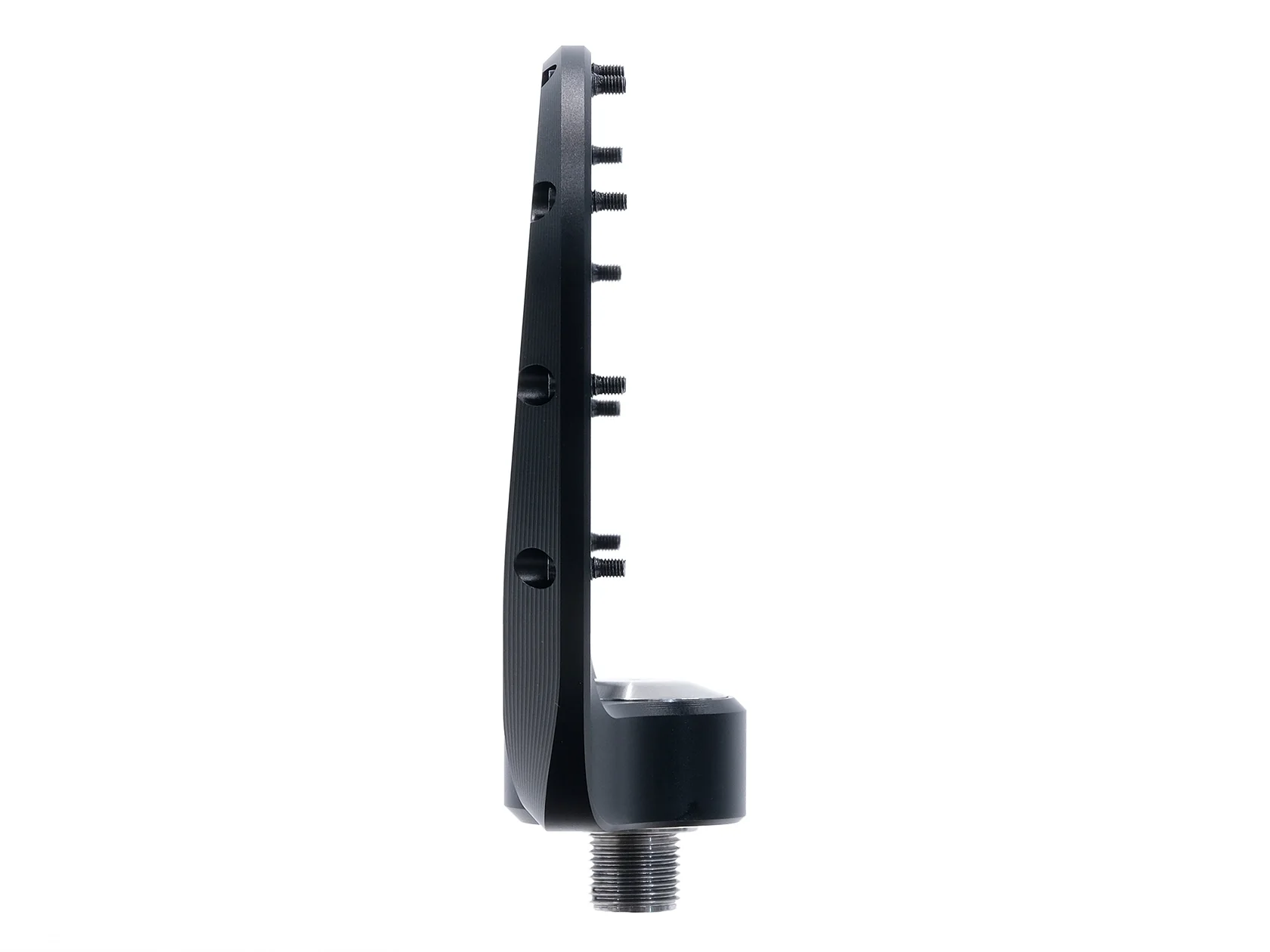

Low & Stable

The base of our platform sits 6mm below the centre of the axle. Most pedals place the platform ~6mm above the centre of the axle. This effectively lowers the rider's centre of mass ~12mm offering significant stability, and control. During sudden decelerations, the pedal acts as a pendulum and swings forward cradling the rider's foot in a heels-down position. In the event that you take your foot off a pedal, our pedals are self-righting

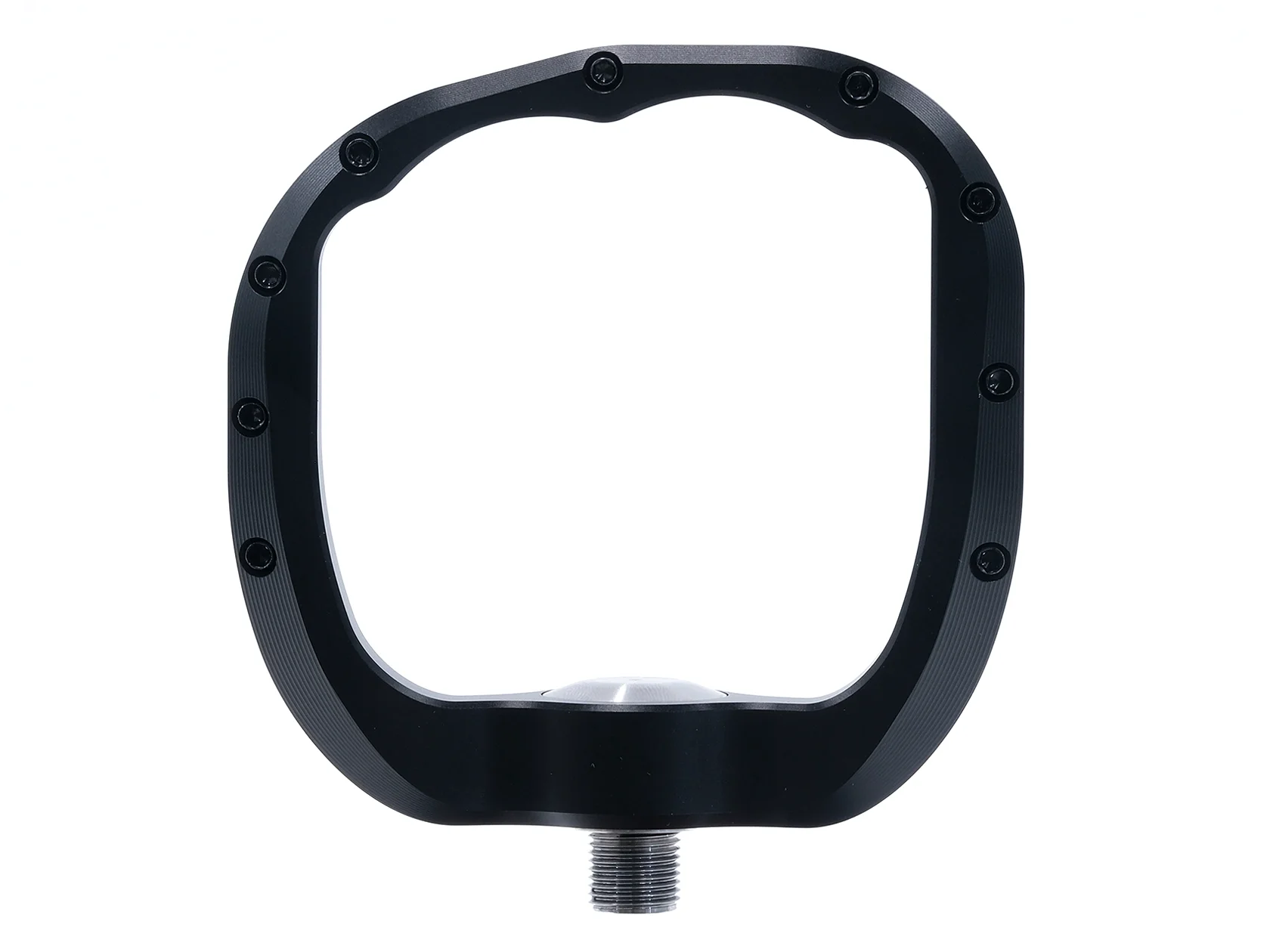

Thin & Smooth

Without the requirement of traction on both sides, we were able to make them a mere 7mm thin at the outer edge and optimize the shape to glance off of roots and rocks

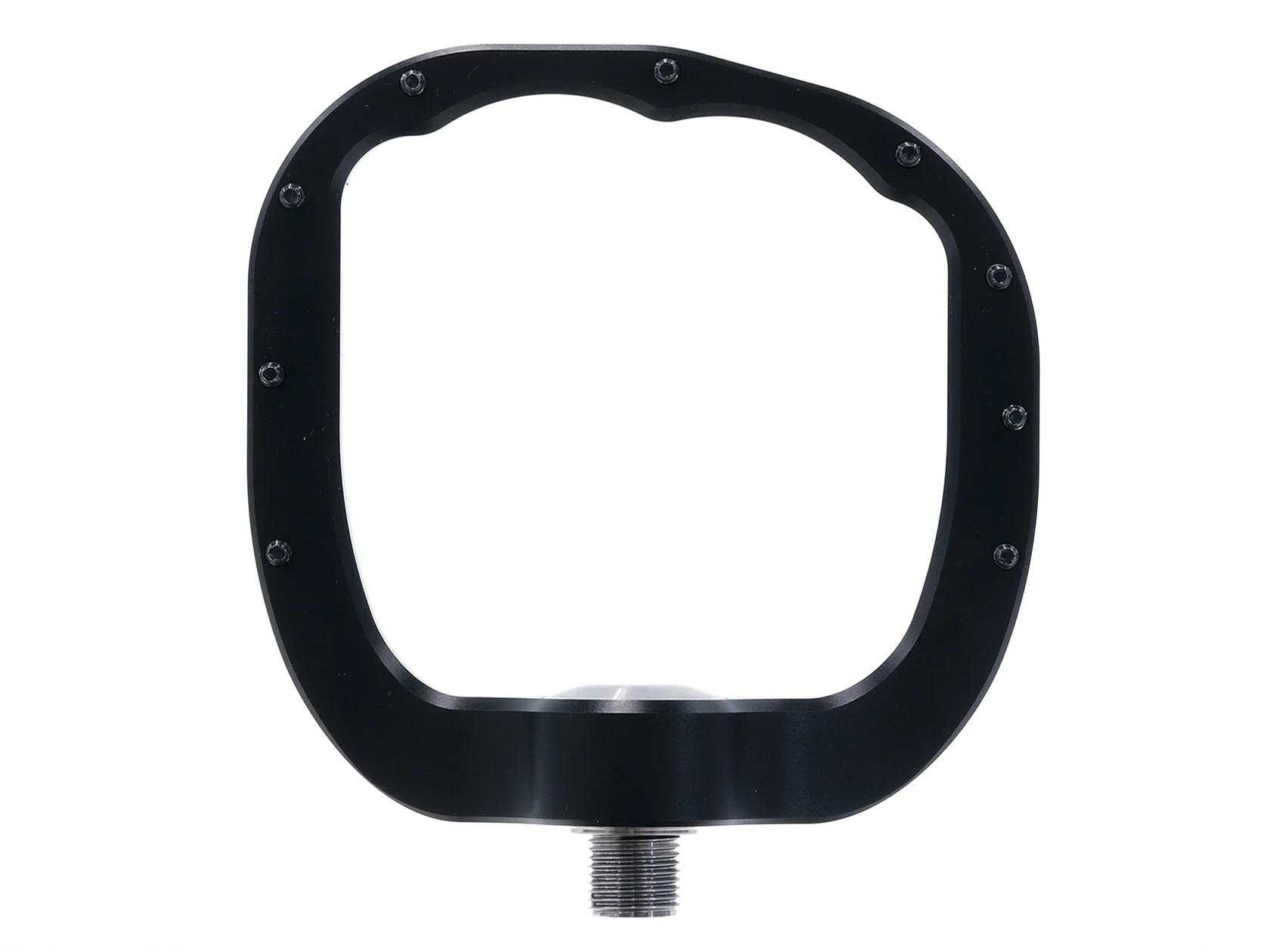

Concave & Grippy

Without an axle underfoot, the shoe is free to flex a small amount, offering an exceptional amount of grip on the pins and a locked-in pedal feel

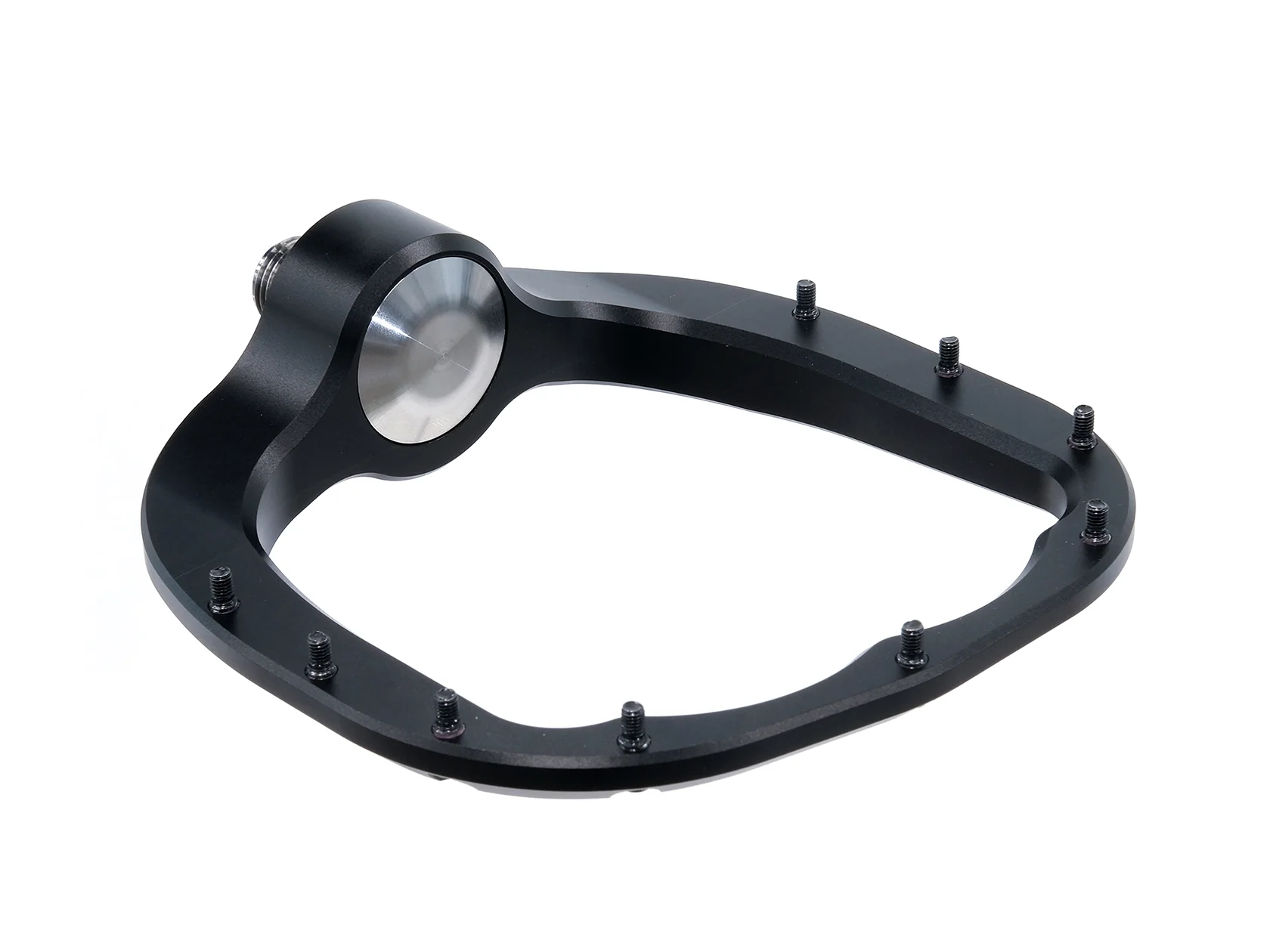

Strong & Serviceable

Our pedal bodies are CNC'd out of 7075 Aluminum in Calgary, AB. Each pedal houses 2 robust 7902 bearings. Total pedal weight is 207g
